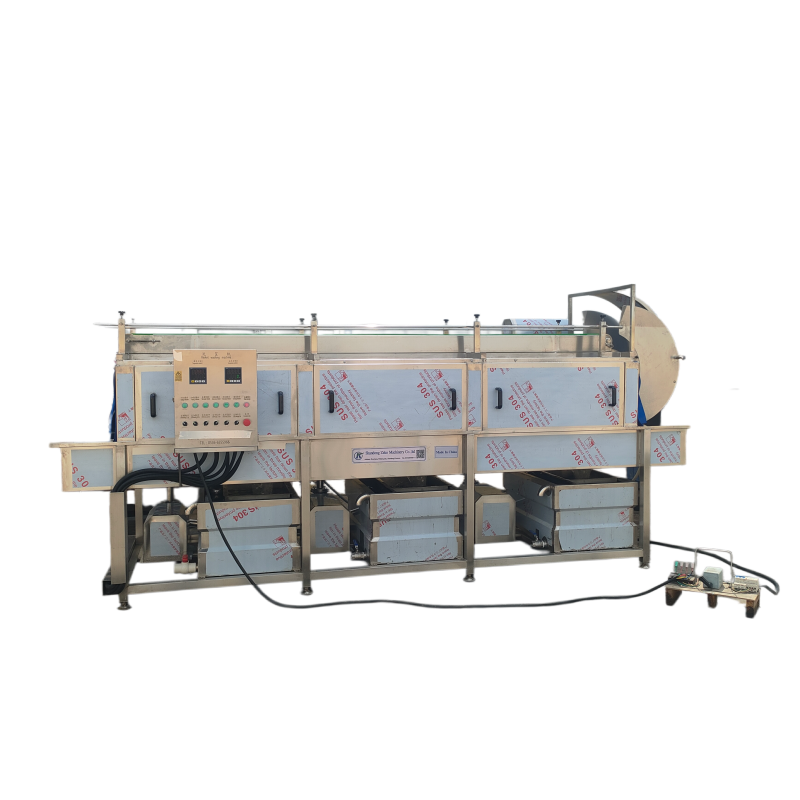

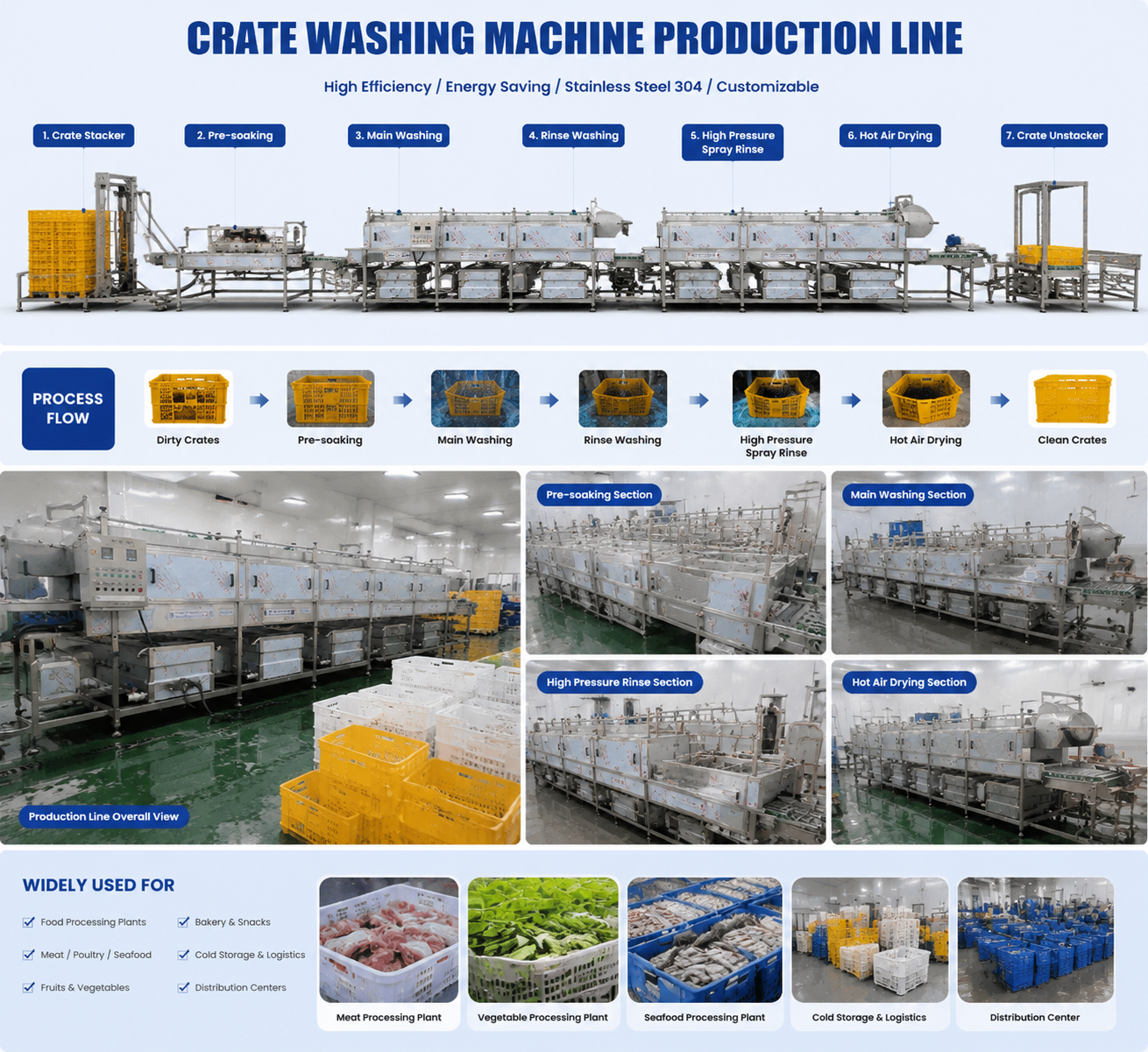

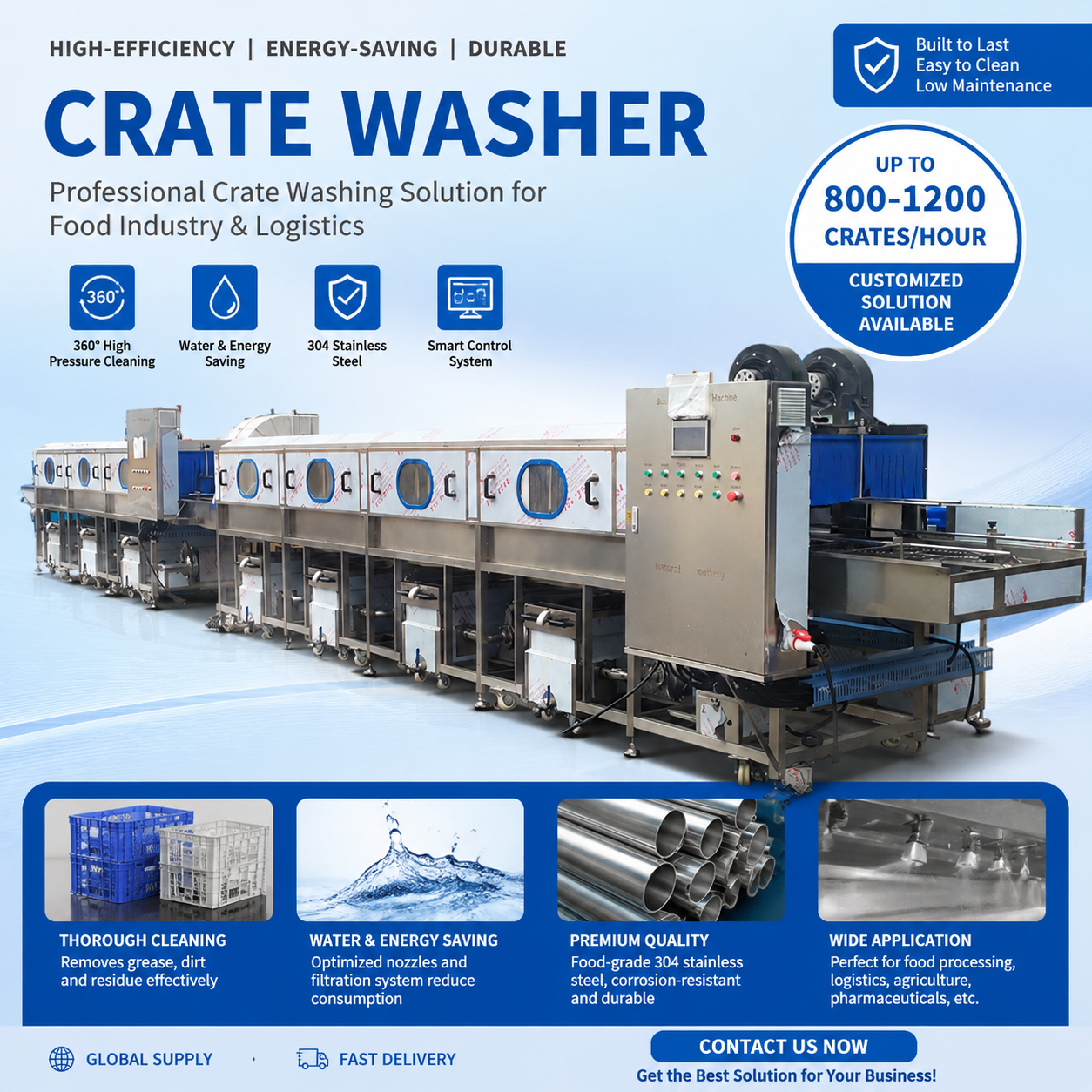

Automatic crate washing machine is continuous industrial cleaning equipment specially designed for plastic turnover crates, food trays and storage baskets widely used in food processing plants, central kitchens and frozen food factories. Constructed with full SUS304 stainless steel, it features three-section cleaning workflow including alkaline degreasing, hot water rinsing and final fresh water flushing via multi-angle high-pressure spray nozzles. Driven by variable frequency conveying chain, the machine automatically finishes feeding, full-surface decontamination and discharging without repeated manual handling. Built-in circulating filtration system recycles cleaning water to slash water and detergent waste remarkably. It replaces 4~7 manual workers and ensures consistent cleaning effect to remove hidden food residues and grease inside crate gaps, effectively preventing cross-contamination of raw materials. Standardized basket sanitation helps factories satisfy international food safety audit standards and expand export business. As essential supporting equipment for automated food production lines, it cuts comprehensive operating cost and improves overall workshop hygiene efficiently.
Manual crate cleaning needs 4–7 workers to soak, scrub and rinse baskets one by one. Cleanliness varies greatly; grease and food scraps remain stuck in crate corners, triggering raw material cross-contamination and product waste. Open random washing wastes massive water and detergent, while long-time manual scrubbing scratches baskets and shortens their service life. High daily labor cost keeps raising factory operating expense, and unstable sanitation often leads to failed factory audits and heavy fines.
Automatic washer only requires one attendant. Three-stage all-round high-pressure spray removes hidden dirt thoroughly for unified cleanliness. Closed circulating water cuts over 70% water consumption, and gentle conveying avoids basket damage. Continuous high-speed cleaning eliminates crate backlog and smooths production flow. Stable hygiene helps factories pass global inspections effortlessly, cutting hidden losses on labor, wastage and fines and bringing lasting profit growth.
Parameter Item | Specific Data |
|---|---|
Full Machine Dimension | 6200×1350×1720 mm |
Effective Cleaning Width | 520 mm |
Total Installed Power | 18.5 KW |
Rated Voltage | 380V 50Hz(Customizable 220V/415V) |
Number of Water Tanks | 3 independent separated water tanks |
Single Tank Volume | 650 L per tank |
Working Capacity | 800~1200 crates per hour |
Conveying Speed | 0.3~1.2 m/min(VFD stepless adjustable) |
Main Material | Whole machine SUS304 food grade stainless steel |
Cleaning Temperature | Hot water 45~85℃ adjustable with electric heating |
Water Recycling Rate | ≥72% via multi-layer filter circulation system |
Required Operators | 1 person for feeding & inspection |
Applicable Crate Size | Max 600×400×300 mm standard plastic turnover basket |

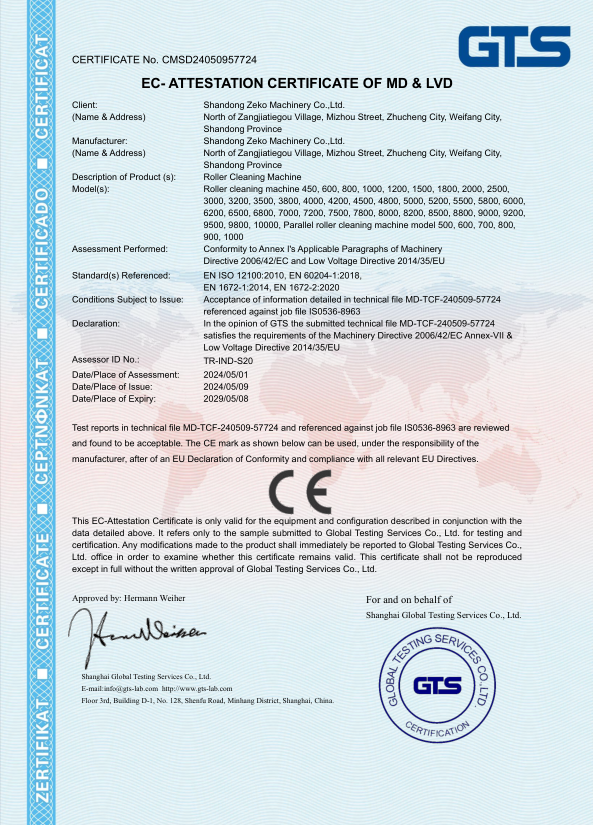

Certification | CE & ISO9001 available |
Founded in Zhucheng, Shandong, China, Shandong Zeko Machinery Co., Ltd. is a professional manufacturer specializing in food processing machinery and complete production line solutions. The company integrates research and development, manufacturing, sales, and after-sales service, providing equipment for meat, vegetable, fruit,seafood, and snack food processing industries. With a skilled technical team, strict quality control system, and years of industry experience, Zeko Machinery delivers reliable, efficient, and customized solutions to customers worldwide. Its products are manufactured using food-grade stainless steel, ensuring durability, hygiene, and stable performance. The company offers OEM and ODM services, supporting customized designs to meet different production requirements. From washing, cutting, dewatering, drying, frying, and packaging equipment to fully automated processing lines, Zeko Machinery helps customers improve productivity, reduce labor costs, and achieve higher profitability. With competitive pricing, professional technical support, and a comprehensive after-sales service network, the company has earned the trust of customers across North America, Europe, Southeast Asia, and many other international markets.

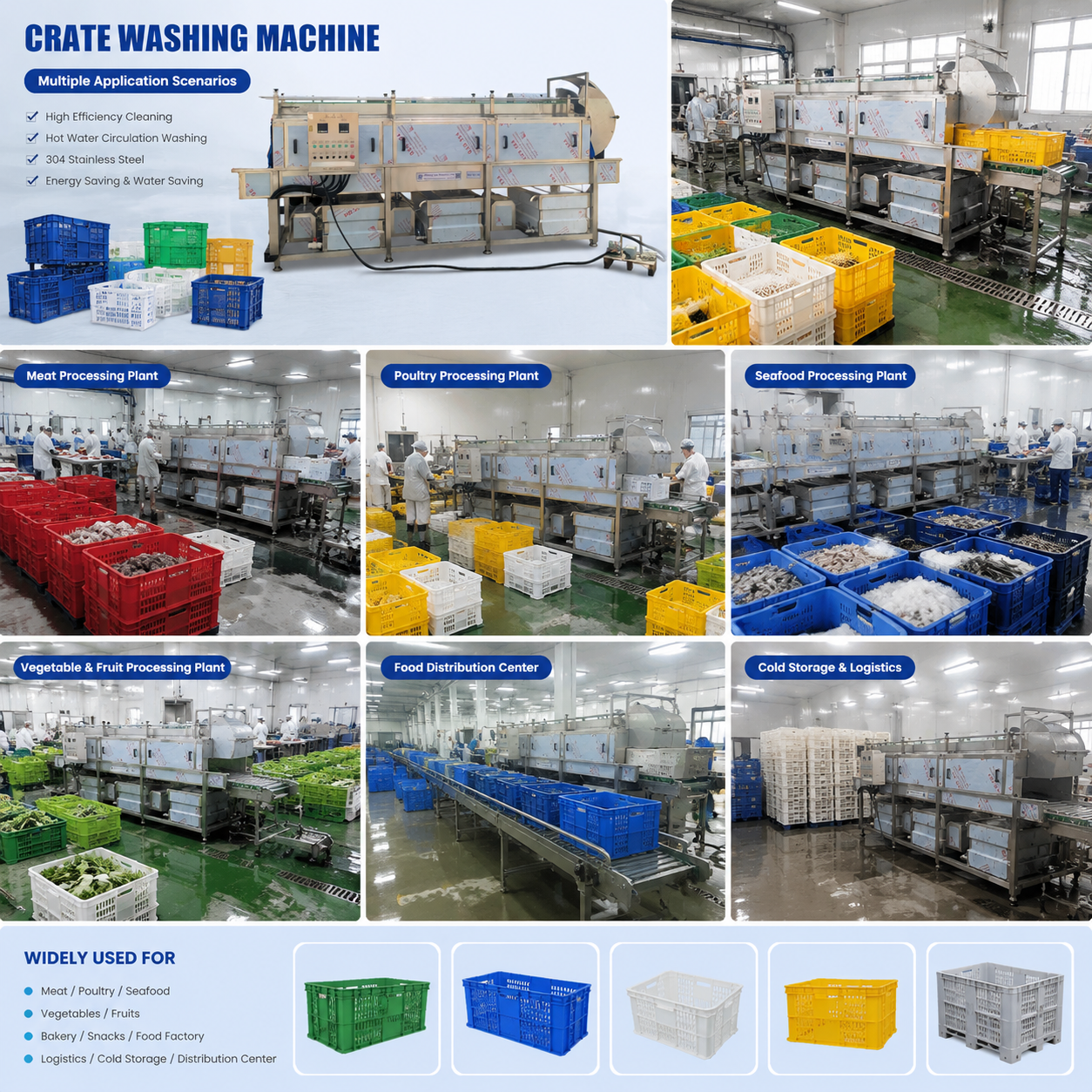

A: It is applicable for standard plastic turnover crates, food storage trays, meat containers, vegetable baskets and logistics packing boxes used in central kitchen, frozen food and pickled food factories. Customized modification is available for special-sized non-standard baskets.
A: Only 1 operator is needed to place crates on the feeding inlet and inspect finished output, replacing 4~7 manual cleaning workers largely to cut long-term labor expense.
A: Yes. Equipped with three independent water tanks and closed circulating filtration system, over 70% cleaning water can be recycled, greatly reducing daily water and detergent consumption.
A: Supported. It adopts PLC variable frequency speed control system on control cabinet, users can flexibly set conveyor speed according to heavy oil residue or light-stain crates to guarantee stable cleaning result.
A: Full machine adopts SUS304 food-grade stainless steel, available with CE & ISO certification. Standard high-temperature spray cleaning meets HACCP hygiene requirements to help factories smoothly pass global third-party sanitation inspection.
