| Quantity: | |
|---|---|

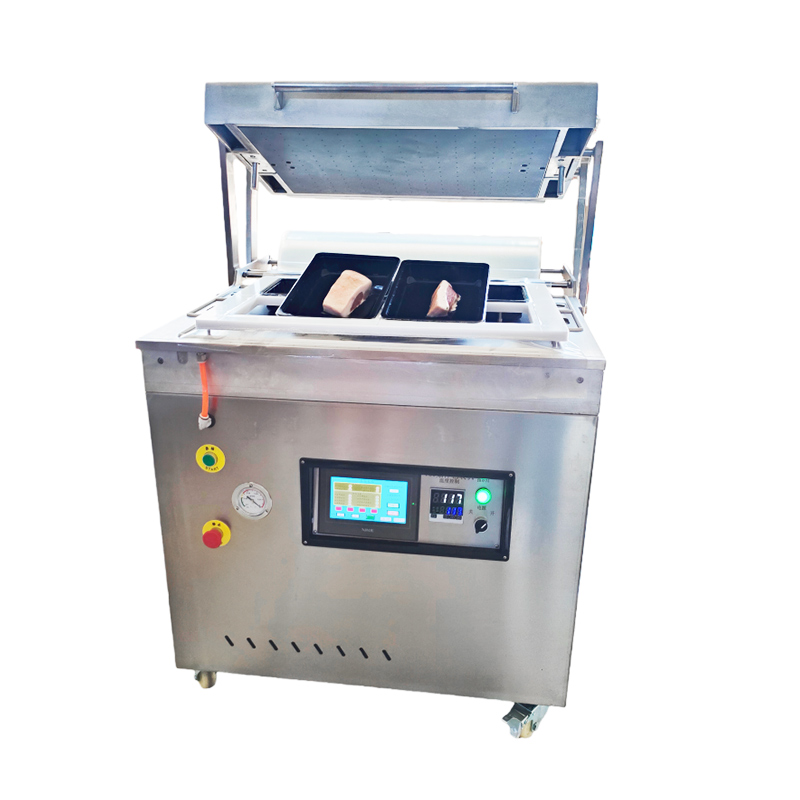

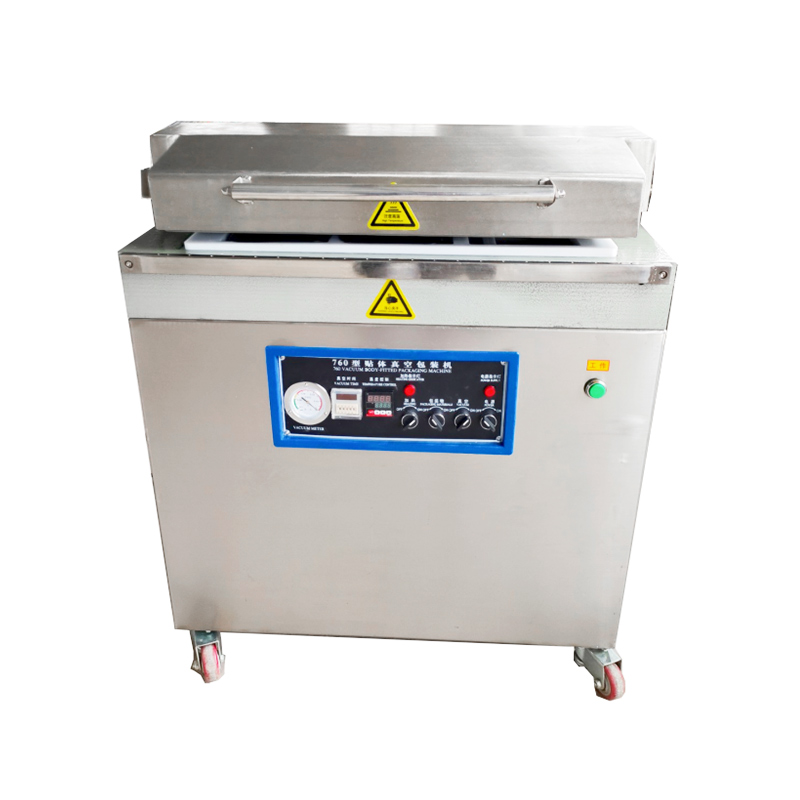

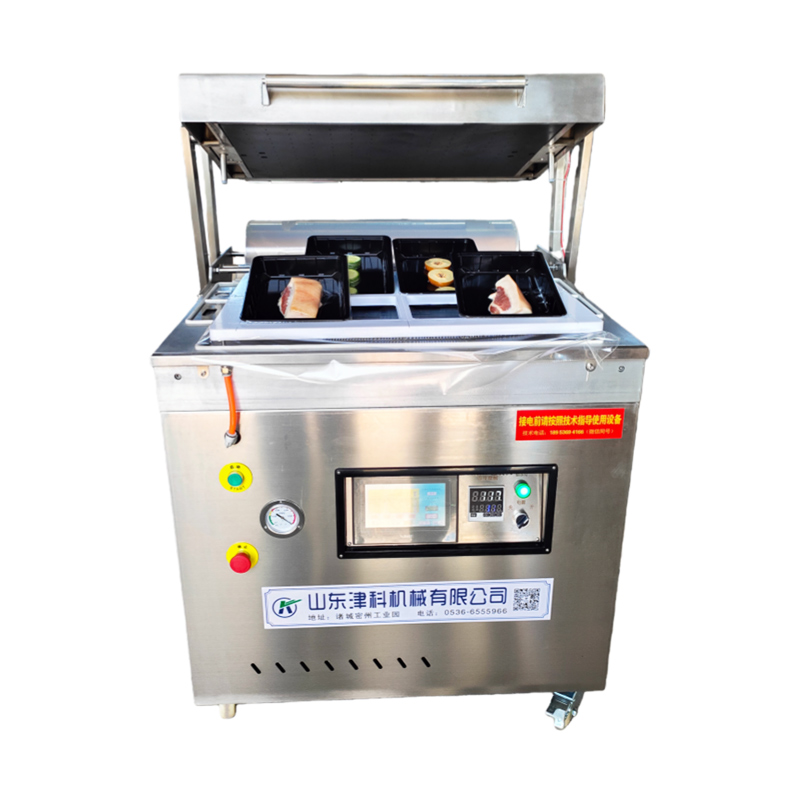

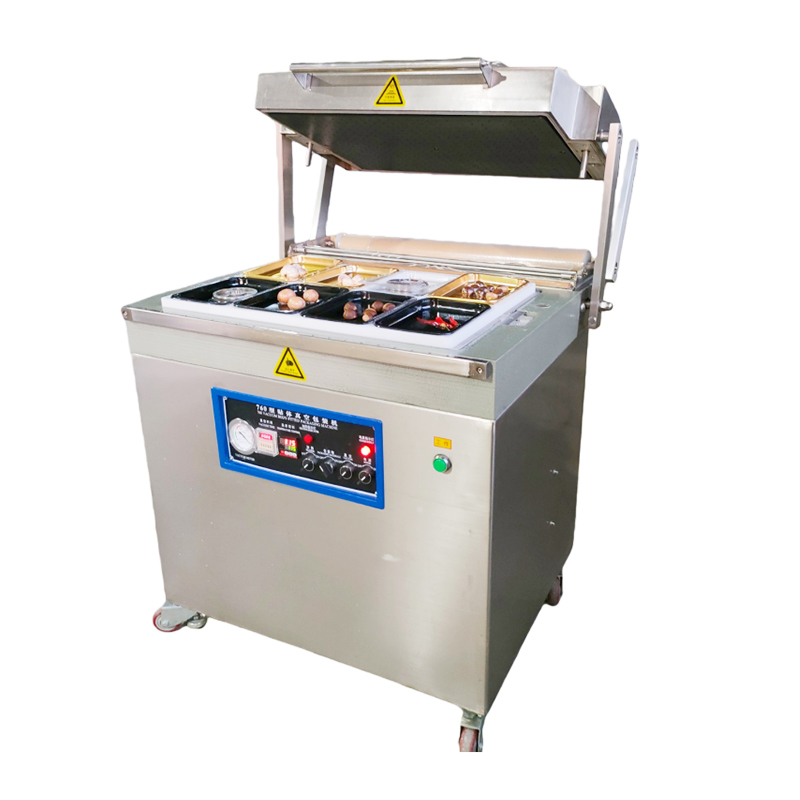

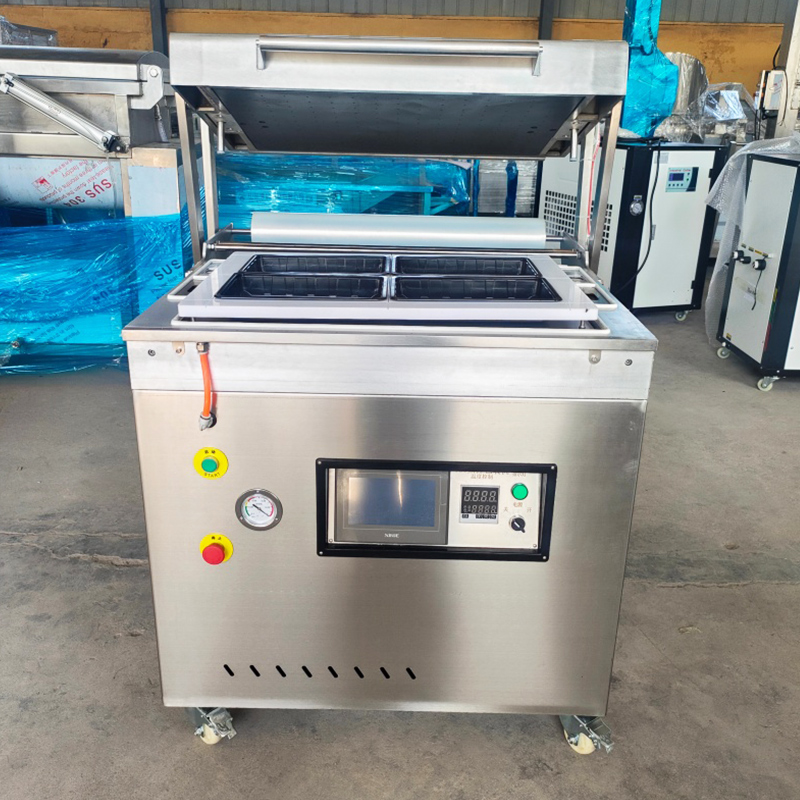

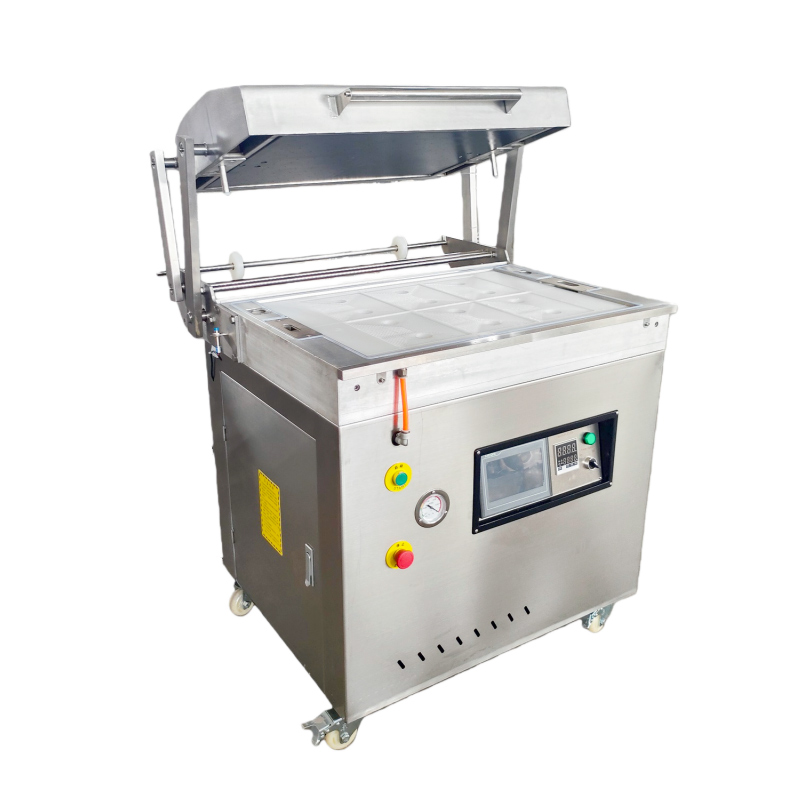

1. The 760 Vacuum Skin Packaging Machine operates at an impressive packaging speed of 4-8 packs per minute, making it ideal for high-volume food processing lines. This high throughput ensures that large quantities of meat, seafood, and ready meals can be packaged efficiently, significantly reducing labor costs and increasing production capacity.
2. Featuring PLC control and an intuitive touchscreen interface, the machine allows for precise control of vacuum pressure, sealing time, and temperature, ensuring consistent packaging quality. The easy-to-use interface reduces training time and simplifies operation, making it ideal for both experienced operators and new users in the food industry.
3. Built with 304 stainless steel, the 760 machine meets high hygiene standards, making it suitable for the food industry. This durable material resists corrosion, ensuring long-lasting performance even in demanding environments. The design is also easy to clean, which helps maintain food safety and reduces downtime for maintenance.
4. The vacuum skin sealing technology ensures that the product is tightly sealed with a perfect fit to the tray, improving the visual appeal and shelf life of the product. The machine provides a tight seal with no air pockets, reducing oxidation and extending freshness for up to 5 times longer than traditional packaging methods.
5. The 760 machine is designed with energy-saving features, consuming 20% less energy compared to similar machines in the market. This cost-saving benefit contributes to the long-term reduction of operational costs, making it a sustainable investment for businesses looking to improve their bottom line while maintaining quality.
Product name | Dody fitting packing machine | Vacuo | 0.5mbar |
Power supply | 380V/50HZ | Packaging speed | 9 -14s/ time |
Total power | 3.5KW | Packing room volume | 700*500*100 |
Standard film width | 760mm | Boundary dimension | 1000*800*1200 |
Outer diameter of membrane cylinder | 210mm | Weight | 300kg |
Product Application Scenarios of the 760 Vacuum Skin Packaging Machine
1. Meat Processing: Ideal for packaging fresh meats like beef, pork, and lamb, extending shelf life and enhancing product presentation for retail.
2. Seafood Packaging: Perfect for packaging seafood like fish, shrimp, and shellfish, preserving freshness and reducing oxidation.
3. Ready Meals: Efficient for packaging ready-to-eat meals and convenience foods, maintaining freshness and visual appeal for longer shelf life.
4. Deli Meat & Processed Foods: Great for deli meats like ham and sausages, ensuring a tight seal that keeps products fresh and attractive.
5. Retail & Supermarkets: Used in supermarkets for attractive packaging of meats, seafood, and fresh produce, offering better shelf presentation and longer freshness.
Safe operating rules for vacuum packaging machine
1Applicable model:SZ760
2 Operation procedures:
2.1 Preparation before use:
2.1.1 Place the machine smoothly and check whether the cover is closed smoothly
2.1.2 Power Supply required by the model.
2.1.3 Check whether the position of the oil surface of the vacuum pump is correct. If it is incorrect, adjust it
2.1.4 Grounding the device properly.
2.1.5 Lift up the studio, turn on the power, turn on the power switch, turn on the vacuum pump switch, and check whether the vacuum pump runs normally. (If the sound is unpleasant and does not pump, it is likely that the vacuum pump motor is reversed, and any two phases in the three-phase power supply should be adjusted. In winter, it is necessary to heat the machine for 2-3 minutes, so that the vacuum pump is fully lubricated before working. 2.2 Adjustment before use:
2.2.1 Select vacuum degree: Select the pumping time according to the process requirements. Generally, the limit vacuum degree needs to be above 30s.
2.2.2 Select heating temperature: Select the required heating temperature according to the film coating material, and set the temperature controller to the corresponding value. (Generally 110-135 degrees)
2.3 Turn on: turn on the power switch, then turn on the heating switch, heat up to the preset temperature, put the product on the tray or cardboard, lay it flat in the lower work room, press the manual drop plate switch (that is, the work switch) in the lower right corner by hand, then pull the cover film from the back to the front and put it on the suction film, pull the top cover to the front with both hands, and press down with both hands. The equipment automatically vacuums, fits the body, cuts off the whole film, and then deflates, pulls up the top cover by hand, moves the product away and divides the packaging, puts the product into the workspace again, and enters the next working cycle. If the packaging product is high in height and heavy in weight, please open the equipment packaging switch and carry out body packaging. 2.4 Shutdown: When you stop working, turn off the heating switch, vacuum pump switch, power switch, and disconnect the power supply of the whole machine. The equipment is equipped with emergency stop function, if there are special circumstances, please turn off the vacuum pump switch, you can stop working and exhaust, cover up.
3. Security. To prevent burns, do not touch the heating plate. When the equipment is working, the heating plate of the vacuum chamber has high temperature, and it takes time for the residual temperature to dissipate after the work is finished.
A: The thermoforming machine uses a vacuum-sealing process to ensure each package is airtight. The vacuum chamber removes air, which helps preserve the freshness of products and extends shelf life, making it ideal for perishable items.
A: Yes, our thermoforming machines are designed with user-friendly mold change systems. You can easily adjust the mold or format to package different sizes and shapes, improving production efficiency and flexibility.
A: Routine maintenance includes checking and cleaning the vacuum pump, ensuring the heating elements are functioning correctly, and lubricating moving parts. Regular inspections will help maintain optimal performance and extend the machine's lifespan.
A: Our thermoforming machines are compatible with a variety of materials, including PET, PP, PVC, and PLA films. These materials offer excellent clarity, durability, and eco-friendly options for sustainable packaging solutions.
