1. High-Efficiency Washing
The eddy current cleaning machine utilizes high-speed water circulation to create a powerful eddy current, effectively removing dirt, pesticides, and impurities from vegetables and fruits. This Vegetable washing machine ensures thorough cleaning while maintaining product integrity, improving overall hygiene and reducing manual labor requirements.
2. Gentle Yet Thorough Cleaning
Equipped with advanced water turbulence control, this cleaning machine thoroughly cleans delicate vegetables and fruits without causing damage. The eddy current design ensures uniform exposure of all surfaces to water flow, preserving freshness and texture, making it ideal for industrial food processing.
3. Adjustable Speed and Water Flow
Operators can easily adjust the rotation speed, water flow, and cleaning duration of the eddy current cleaning machine to suit different product types. This flexibility allows for optimal cleaning of leafy vegetables, root crops, and other produce, ensuring consistent quality across diverse batches.
4. Durable and Easy-to-Clean Construction
Made from high-quality stainless steel, this Vegetable washing machine resists corrosion and wear in harsh production environments. Its modular design allows for quick disassembly, cleaning, and maintenance, meeting strict food hygiene standards and improving operational efficiency.
5. Energy-Saving and Eco-Friendly
With optimized water circulation and a high-efficiency motor, the cleaning machine minimizes water and electricity consumption while maintaining high throughput. Its low-noise operation and eco-friendly design make it suitable for modern industrial kitchens and food processing plants seeking sustainable solutions.
6. Wide Industrial Applications
This eddy current cleaning machine is suitable for cleaning a variety of vegetables, fruits, and other produce in industrial food processing. Its Vegetable washing machine design ensures uniform and efficient cleaning, supporting high-volume production while maintaining product quality and safety.

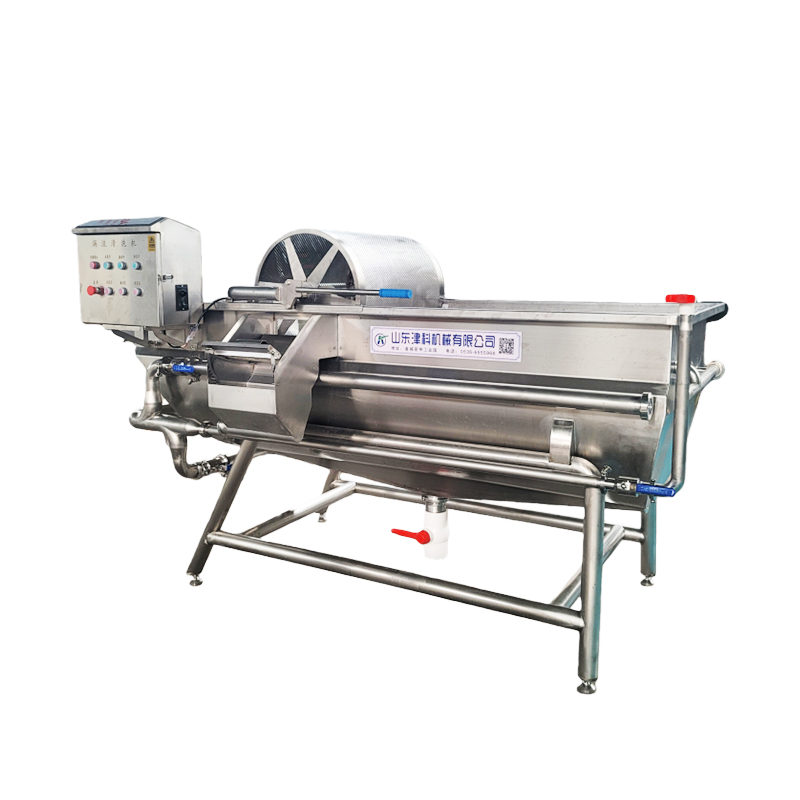

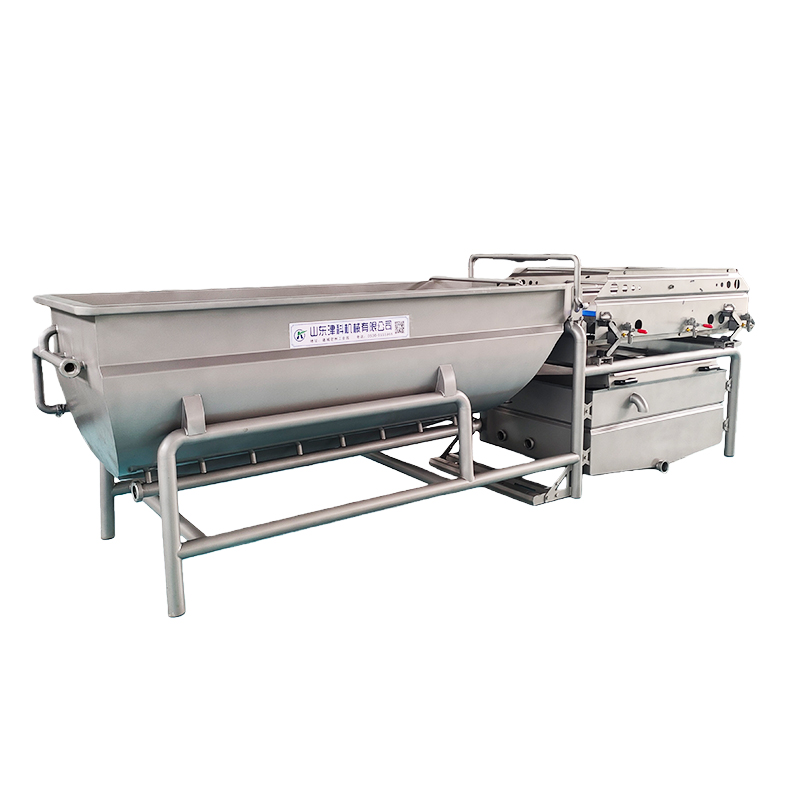

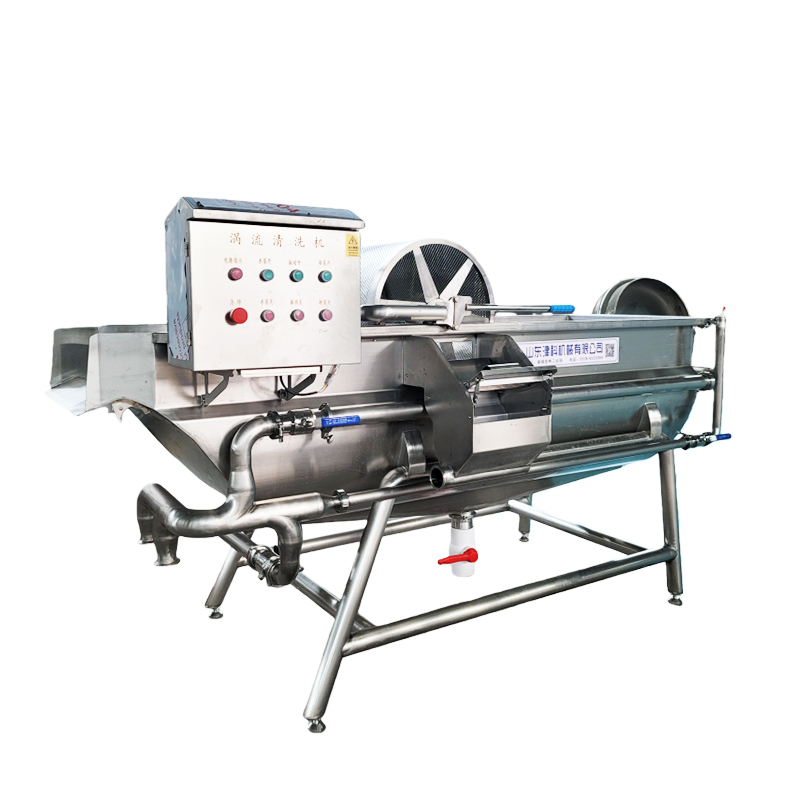

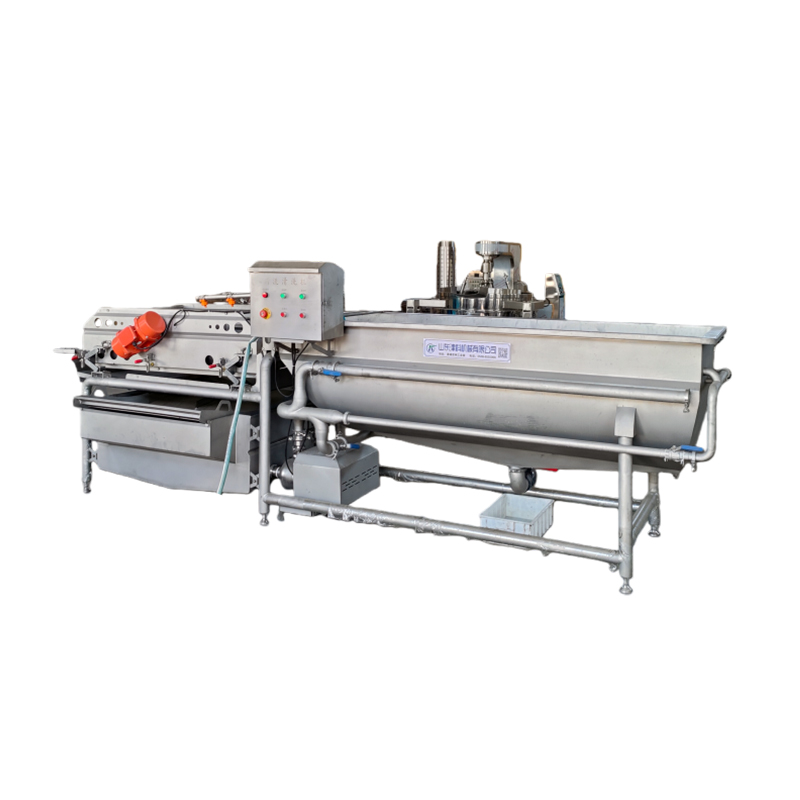

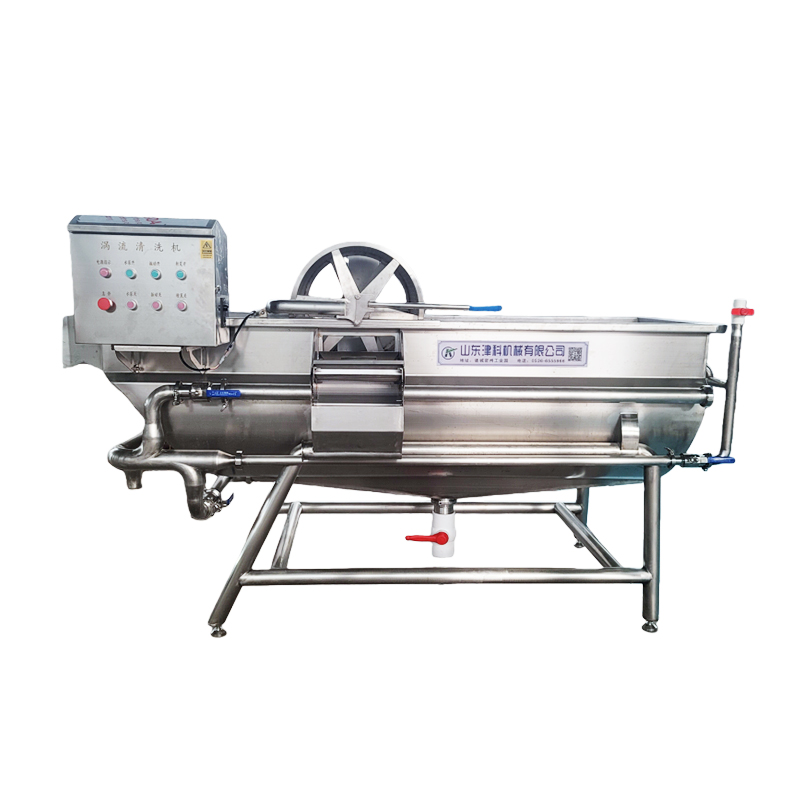

Product Name | Eddy current cleaning machine |
Power Supply | 380V Optional |
Overall Dimensions | 4200X1135X1300 (mm) (Tall Model) |
Power | 3.0KW |
Product Output | 1000 - 1800KG/H |
Product Material | Food - grade 304 thickened stainless steel |
Equipment Weight | 320KG |
Working Method | Bubble surging + water circulation + vibration conveying + spray cleaning |
Applicable Products | Fruits, vegetables, aquatic products, etc. |
1. Scene of fresh fruit and vegetable processing
Suitable for cleaning various leafy vegetables, root vegetables, fruits and vegetables, such as spinach, lettuce, carrots, apples, strawberries, etc. It can efficiently remove sediment, pesticide residues, and impurities from the surface of fruits and vegetables, and is suitable for pre-treatment processes in central kitchens and fruit and vegetable processing plants. The cleaning process also protects the integrity of the fruit and vegetable skin without damaging the fruit flesh structure.
2. Scenarios for processing and delivering clean vegetables
In response to the standardized cleaning needs of clean vegetable processing plants and fresh food distribution enterprises, deep cleaning can be carried out on the diced and shredded fruits and vegetables after cutting to remove residual debris and juice, meet the sterile and clean distribution standards of clean vegetables, adapt to continuous production on assembly lines, and improve processing efficiency.
3. Canned/Pickled Vegetable Processing Scene
As a pre cleaning step in the production of canned goods and pickled vegetables, it can clean various pickled raw materials such as cucumbers, radishes, green plums, yellow peaches, etc., effectively washing away dirt and insect eggs on the surface of the raw materials, reducing impurities and residues in subsequent pickling processes, and improving the quality and hygiene level of finished canned goods and pickled vegetables.
4. Central Kitchen Scene of Catering Chain
Suitable for the daily preparation of central kitchens in catering chains and group meal enterprises, it can batch clean various fruits and vegetables required for the kitchen, replace manual cleaning, save labor costs, and ensure consistency in cleaning effects, meeting the high-frequency and standardized food processing needs of the catering industry.
5. Scene of initial processing of seafood products
Used for cleaning shellfish and small seafood such as clams, razor clams, scallops, etc., utilizing the impact force of vortex flow to remove sediment and mucus from the shell of seafood, while simulating natural water flow environment to reduce damage to seafood during the cleaning process, suitable for the initial processing of seafood processing plants.
Detailed Operation Guide for Eddy Current Cleaning Machine
1. Preparation before startup
1. Equipment inspection: Confirm that the equipment is placed steadily, the power cord and interface are not damaged, the filter and drain outlet are not blocked, and all valves are closed.
2. Water injection ready: Open the inlet valve of the water tank, inject clean water to the "highest water level line" of the water tank, and close the inlet valve after filling to avoid overflow.
3. Material pretreatment: Sort the materials to be cleaned, remove the rotten and deteriorated parts, and pick out hard objects such as stones and metals to prevent damage to the equipment or affecting the cleaning effect.
2. Power on operation

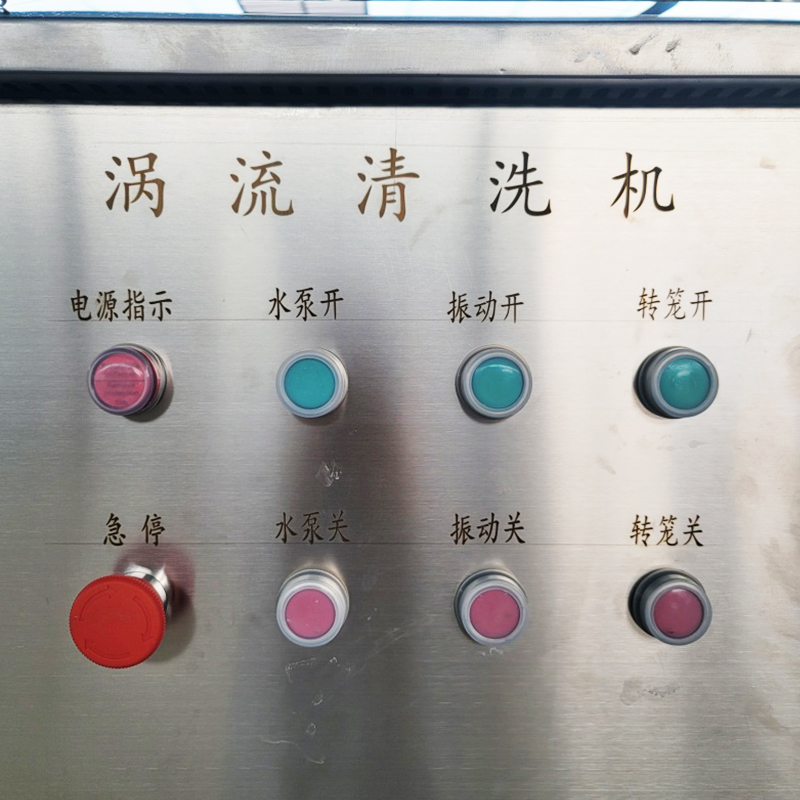

1. Power on standby: Connect the main power supply, press the device main switch, wait for the control panel indicator light to turn on, and enter standby mode.
2. Parameter adjustment: Set parameters based on material type
-Soft materials (leafy vegetables, strawberries): Adjust the vortex power to a low level and set the cleaning time to 3-5 minutes.
-Hard materials (carrots, shellfish): Adjust the eddy current power to high and set the cleaning time to 5-8 minutes.
3. Feeding start: Spread the materials evenly in the cleaning tank to avoid concentrated accumulation, and the feeding amount should not exceed 80% of the rated capacity of the tank. Press the start button, the device starts running, the materials roll and clean with the vortex, and the dirty water is filtered through the filter and discharged from the sewage outlet.
3. Shutdown and Unloading
1. End cleaning: The equipment will automatically shut down after reaching the set time; If you want to end early, you can directly press the "stop" button.
2. Export materials: Open the discharge valve of the cleaning tank and use water flow to export the cleaned materials to the collection container to avoid residue.
4. Cleaning and maintenance
1. Drain accumulated water: Turn off the power and inlet valve, open the water tank drain, and completely drain the remaining accumulated water inside.
2. Clean the filter screen: Disassemble the filter screen, rinse off any remaining impurities and debris with a high-pressure water gun, rinse it clean, then reinstall it in its original position and ensure a secure installation.
3. Equipment flushing: Rinse the inner wall, discharge port, and pipelines of the cleaning tank thoroughly with clean water to remove residual materials and stains, ensuring that there is no accumulated water.
4. Daily inspection: Wipe the equipment casing until it is dry and tidy, and check for any abnormalities such as water leakage, abnormal noise, etc. in the motor, water pump, and pipelines.
5. Long term shutdown treatment: If not used for a long time, the power should be cut off, the equipment should be covered with a dust cover, and lubricating oil should be regularly added to the transmission parts to prevent rusting.
5. Safety precautions
-During the operation of the equipment, it is strictly prohibited to put hands, tools or hard objects into the cleaning tank to prevent mechanical injury.
-Do not clean overweight, sharp, or corrosive materials to avoid scratching the groove or damaging the vortex impeller.
-If the equipment malfunctions such as abnormal noise or water leakage, it is necessary to immediately shut down and cut off the power, investigate and solve the problem, and then restart.
A: It can clean various materials such as leafy vegetables, root vegetables, fruits, shellfish, etc., effectively removing sediment, pesticide residues, and impurities, while protecting the surface of the materials from damage. It is suitable for scenarios such as central kitchens and fruit and vegetable processing plants.
A: Usually caused by clogged filters or excessive dosage. It is recommended to regularly clean the filter screen, with a single injection volume not exceeding 80% of the tank capacity, to ensure that the vortex is sufficient to roll the animal material.
A: There may be slight water flow and motor running noise during equipment operation. If the noise is too loud, it may be due to impeller jamming or loose pipelines. Please stop the machine for inspection, clean up foreign objects, and tighten the pipeline.
A: After each use, it is necessary to clean the filter screen, drain the accumulated water, and rinse the inside of the equipment in a timely manner. Regularly check the status of vulnerable parts. If it is not used for a long time, dust and rust prevention measures should be taken.
A: It can be reused and comes with a built-in filter structure. During cleaning, dirty water is filtered through the filter, and clean water continues to circulate and rinse the material. Only a small amount of water needs to be replenished regularly, which not only saves water resources but also ensures cleaning effectiveness.
