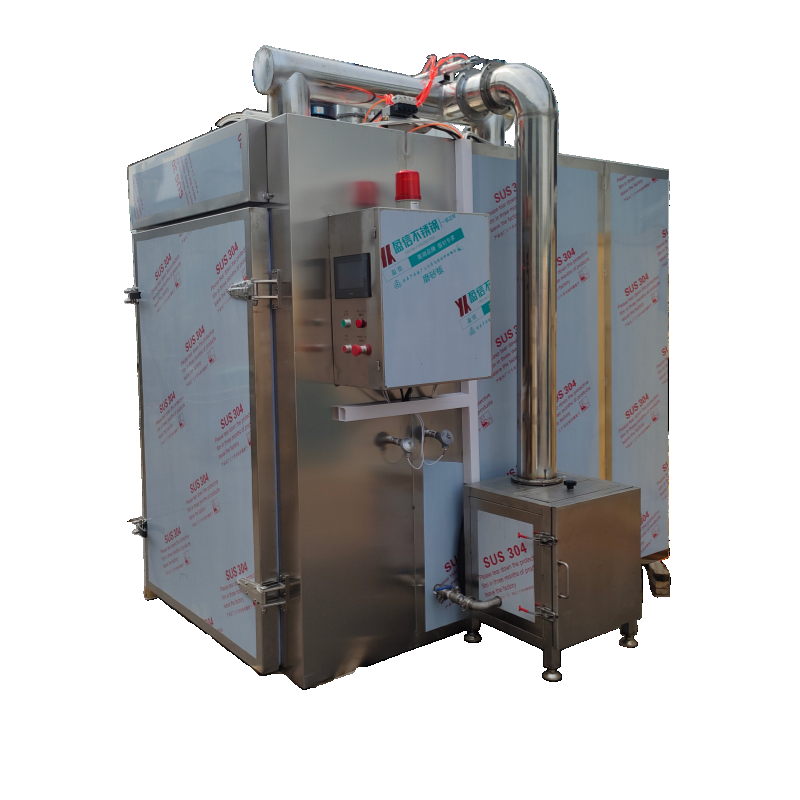

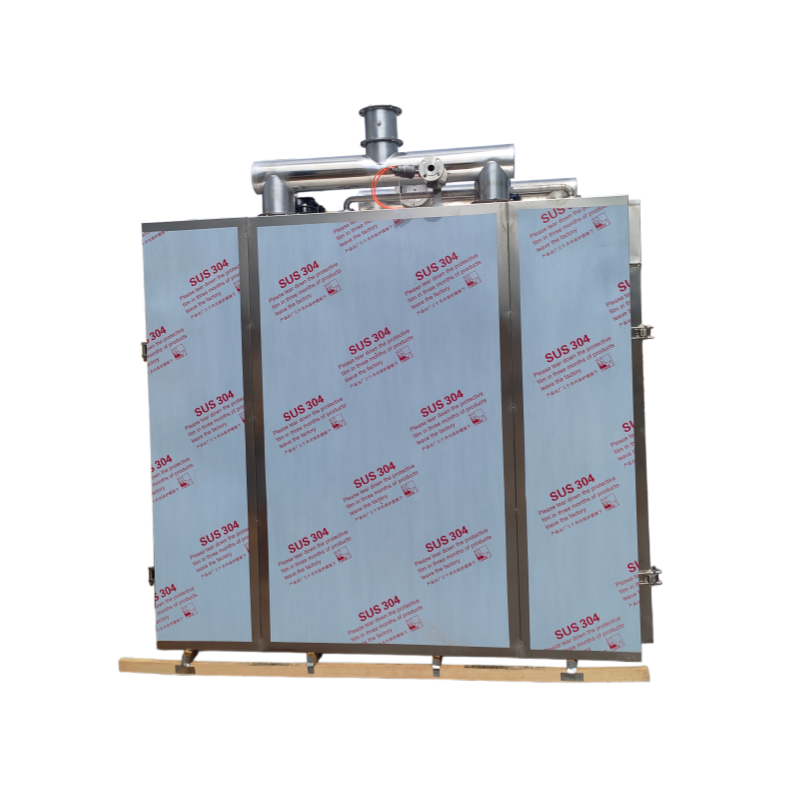

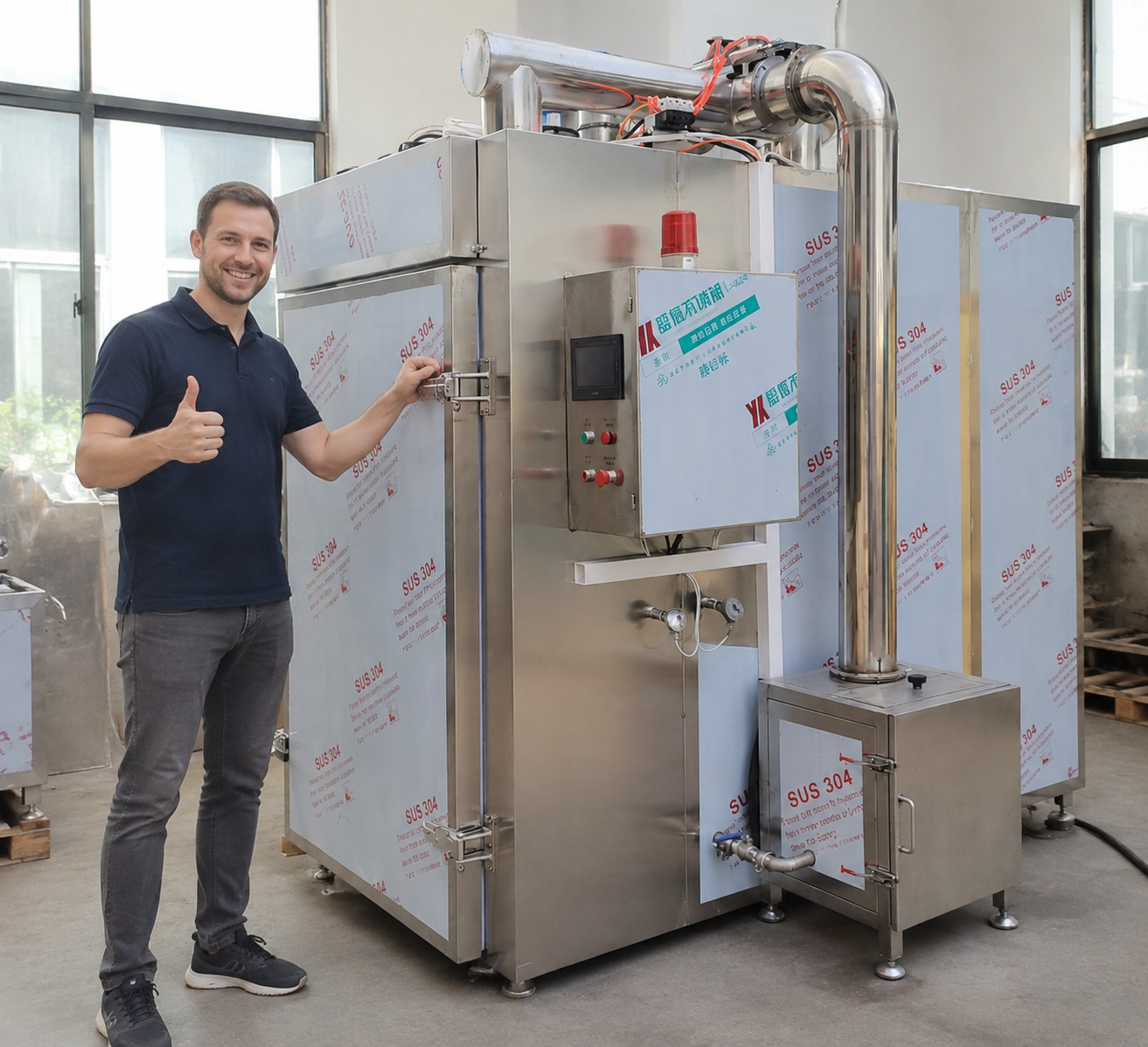

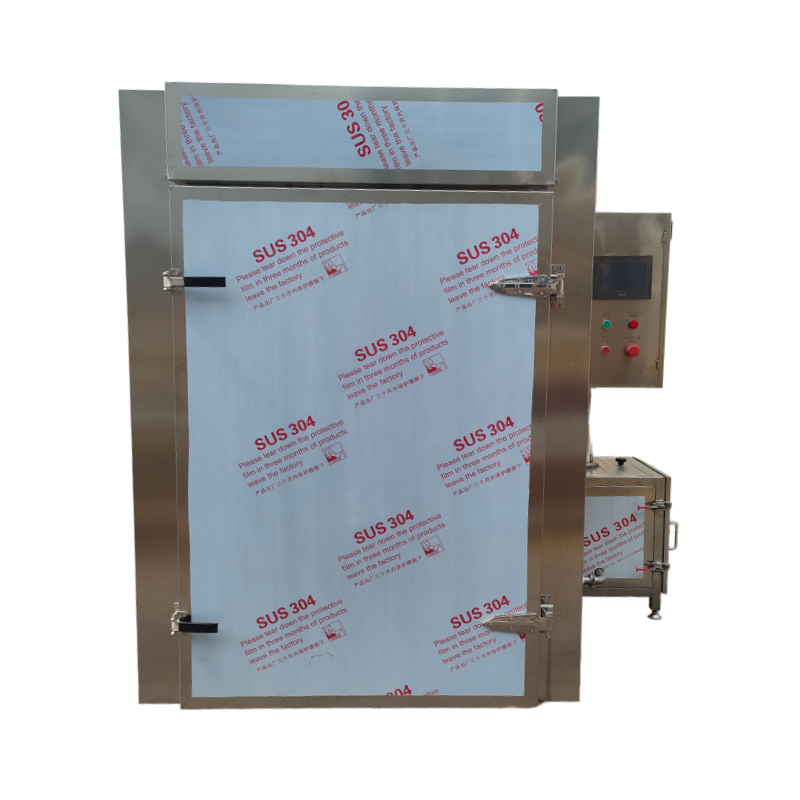

A fully automatic smoke oven is an intelligent all-in-one food processing machine. It combines steaming, drying, smoking, coloring and sterilization, replacing traditional inefficient smoking methods. Equipped with smart touch control system, it supports preset programs and fully automatic operation, saving plenty of labor.
Thanks to the high-efficiency circulating air system, heat and smoke spread evenly inside the chamber. Your finished products will have attractive appearance and rich authentic smoky flavor with consistent quality batch after batch. Made of food-grade stainless steel, the oven features great heat insulation, low energy consumption and a professional smoke purification system, which is eco-friendly and easy to clean.
This machine is widely used for sausages, cured meat, poultry, seafood, bean products and more. It effectively boosts productivity and extends food shelf life. Ideal for small workshops and large factories alike, it helps you create popular featured products and gain stronger market advantages.
This fully automatic smoke oven is a top choice for food processing factories. It integrates steaming, drying, smoking, coloring and sterilization into one unit, simplifying the whole production process remarkably. Equipped with an intelligent digital control system, it precisely regulates temperature, humidity, smoking time and smoke output. The high-efficiency circulating air duct ensures even distribution of heat and smoke, delivering consistent color and rich authentic flavor for every batch of products.

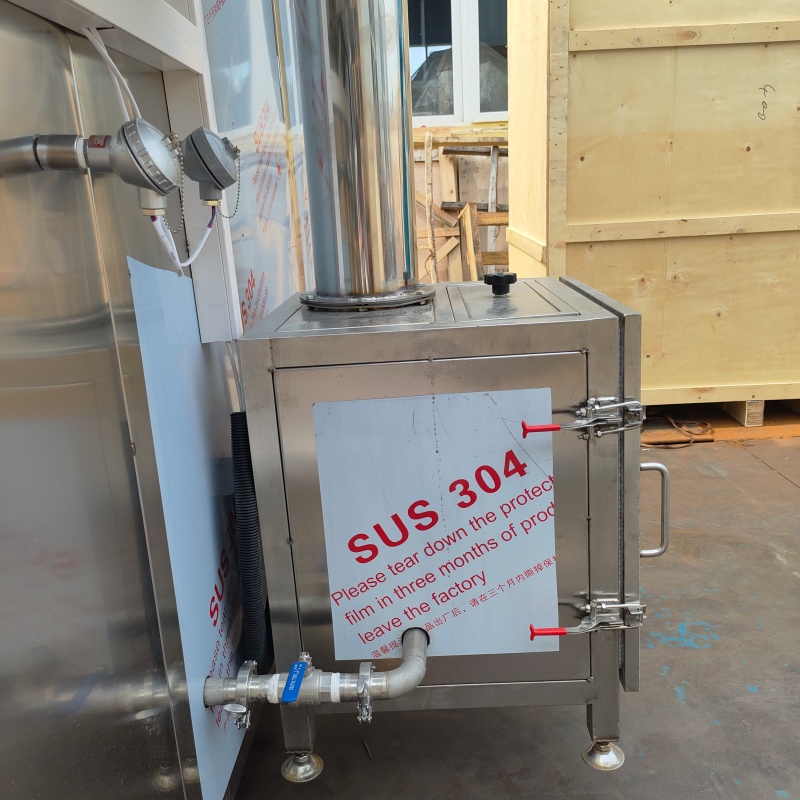

Made of food-grade stainless steel, the oven features a double-layer heat preservation structure to cut energy consumption. The built-in smoke purification device meets environmental standards, and the body is easy to clean and maintain. It works perfectly for cured meat, sausages, poultry, bean products, seafood and more, supporting various smoking techniques.
High automation greatly saves labor costs and boosts production efficiency and yield. Reliable performance complies with food safety requirements. It helps you create distinctive flavored food and stand out in the market, an essential equipment to expand production and increase profits.
Human labor and machine automation differ significantly in terms of efficiency, consistency, cost, flexibility, and safety. Human workers bring adaptability, judgment, and problem-solving skills that are essential in complex or changing environments. They can respond to unexpected situations, make subjective decisions, and handle delicate or creative tasks. However, human labor is often limited by physical endurance, fatigue, and variability in performance. Over time, labor costs such as wages, training, and management can also become substantial.
Machines, on the other hand, are designed for precision, speed, and continuous operation. They can perform repetitive tasks with high consistency and minimal error, making them ideal for industrial production processes. Automated systems significantly reduce reliance on manual labor, improving productivity and stabilizing product quality. Although the initial investment in machinery can be high, long-term operational costs are often lower due to reduced labor expenses and increased efficiency.
In terms of safety, machines can take over hazardous tasks, reducing workplace risks for human workers. However, machines lack flexibility and require maintenance, programming, and technical oversight. Unlike humans, they cannot independently adapt to unforeseen conditions without reconfiguration.
Overall, humans excel in adaptability and decision-making, while machines excel in efficiency and consistency. Modern industries often combine both to achieve optimal productivity and balanced operational performance.
Model number (Type I is electrical control Type II is man-machine interface PLC control) | YX-250ⅠⅡ | YX-500ⅠⅡ | YX-750ⅠⅡ | YX-1000ⅠⅡ |
Production capacity (kg/ furnace) | 250 | 500 | 750 | 1000 |
Total power (kW) | 6.12 | 10.12 | 14.12 | 18.13 |
High-pressure steam pressure (MPa) | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 |
Low pressure Steam pressure (MPa) | 0.1～0.2 | 0.1～0.2 | 0.1～0.2 | 0.1～0.2 |
High pressure furnace temperature (℃) | <85 | <85 | <85 | <85 |
Low pressure furnace temperature (℃) | <100 | <100 | <100 | <100 |
Water pressure (MPa) | 0.2 | 0.2 | 0.2 | 0.2 |
Standard Trailer (mm) | 1000×1030×1980 | 1000×1030×1980 | 1000×1030×1980 | 1000×1030×1980 |
Host size (mm) | 1290×1510×2600 | 2360×1510×2600 | 3430×1510×3600 | 4490×1510×2600 |
Weight (kg) | ≈ 1900 | ≈ 2600 | ≈3300 | ≈ 4000 |
Rated voltage (v) | 380 | 380 | 380 | 380 |

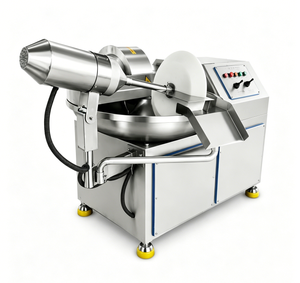

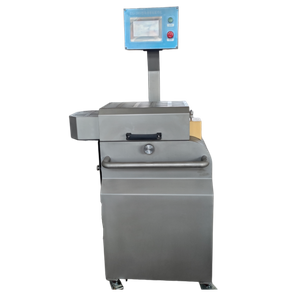

Shandong Zeko Machinery Co., Ltd. is a global supplier of meat processing machine and fruit and vegetable equipment. The company focuses on the research and development,manufacturing and sales of meat bowl chopper, air bubble washing machine, vacuum packaging machine, frozen meat grinder, meat stuffing mixing machine, sausage machine, fruit and vegetable washing machine,vacuum meat tumbler machine, meat ball machine and so on, the company also provides customers with a full set of solutions.
A: It can process meat, sausage, fish, poultry, seafood, and other smoked food products.
A: Yes, it uses a PLC touch screen system with automatic temperature, humidity, and smoke control.
A: Yes, we offer models from 100 kg to 1200 kg per batch or customized solutions.
A: Electric heating, steam heating, or gas heating options are available.
A: No, we provide installation guide videos and remote technical support.
A: Usually 15–30 working days depending on configuration.
