1. Stable Hydraulic Driving System
Adopts high-performance hydraulic system, providing strong and stable filling pressure. It ensures smooth, continuous filling even for high-viscosity meat batter, with low noise and strong power. The pressure can be adjusted freely, greatly improving filling stability and product consistency for industrial production.
2. High Production Capacity & Efficiency

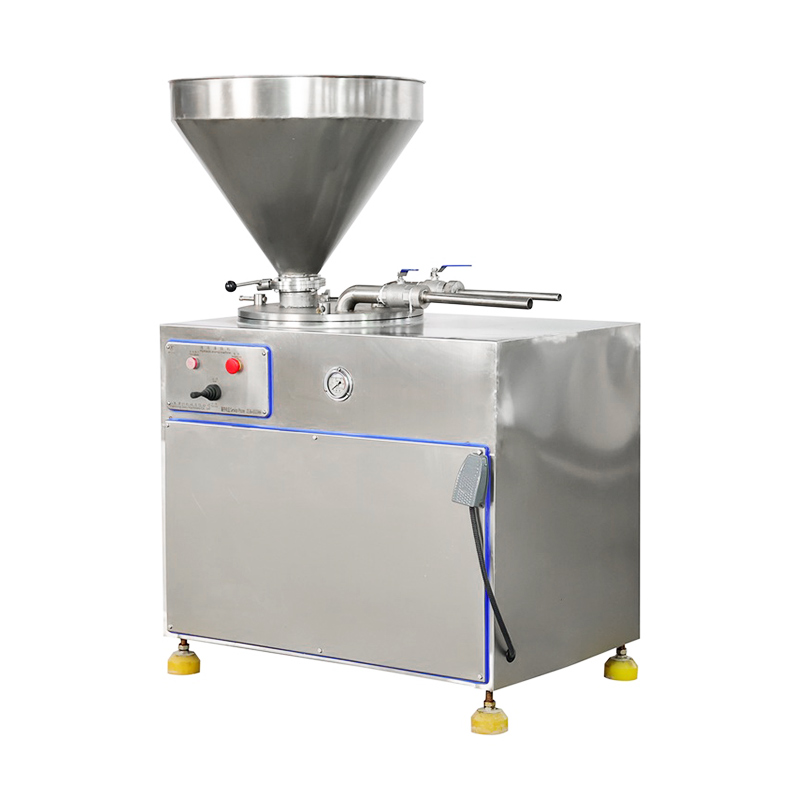

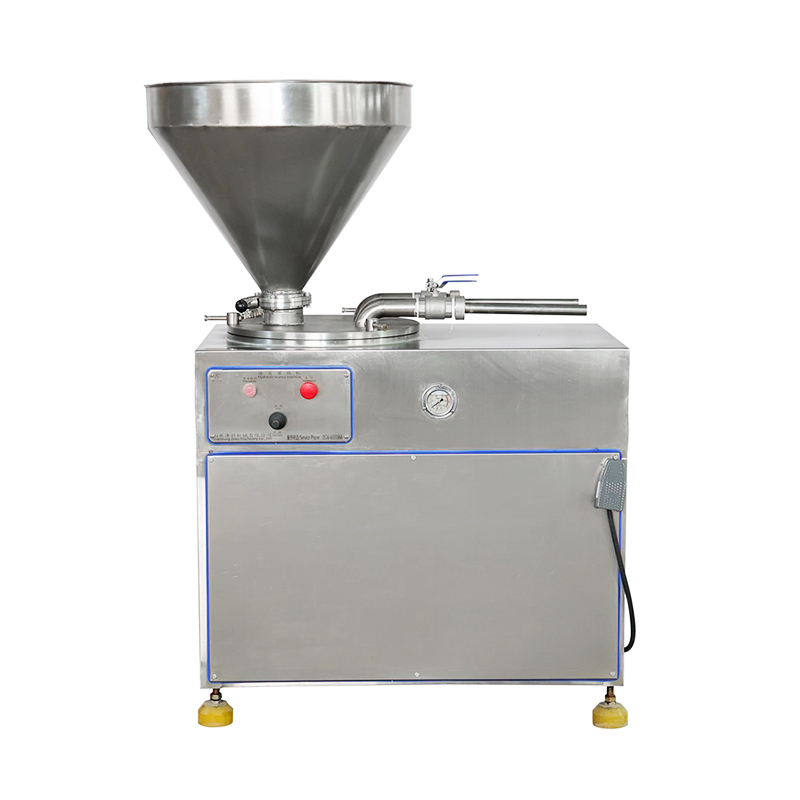

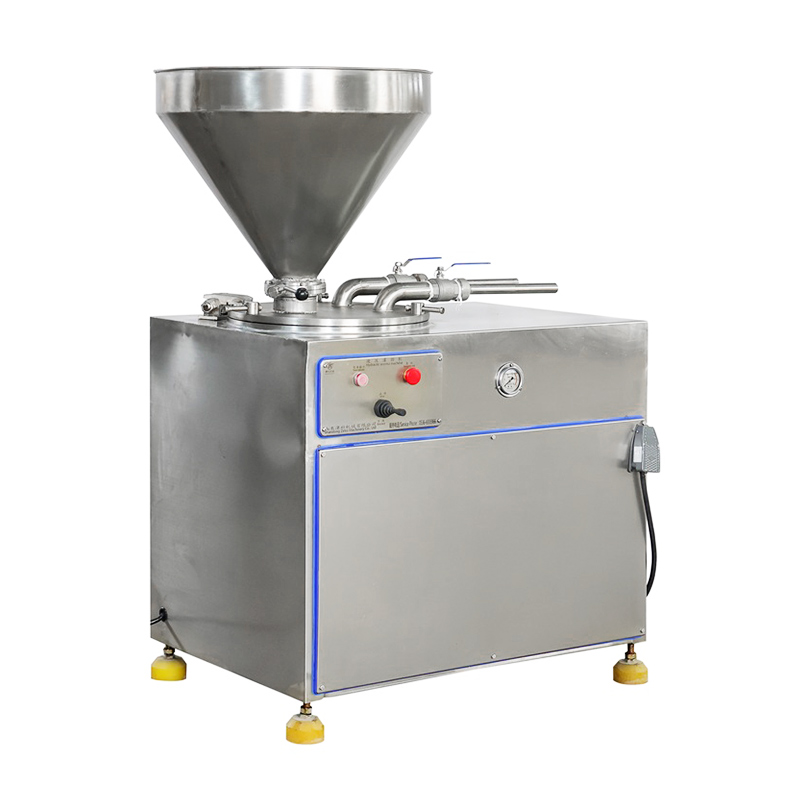

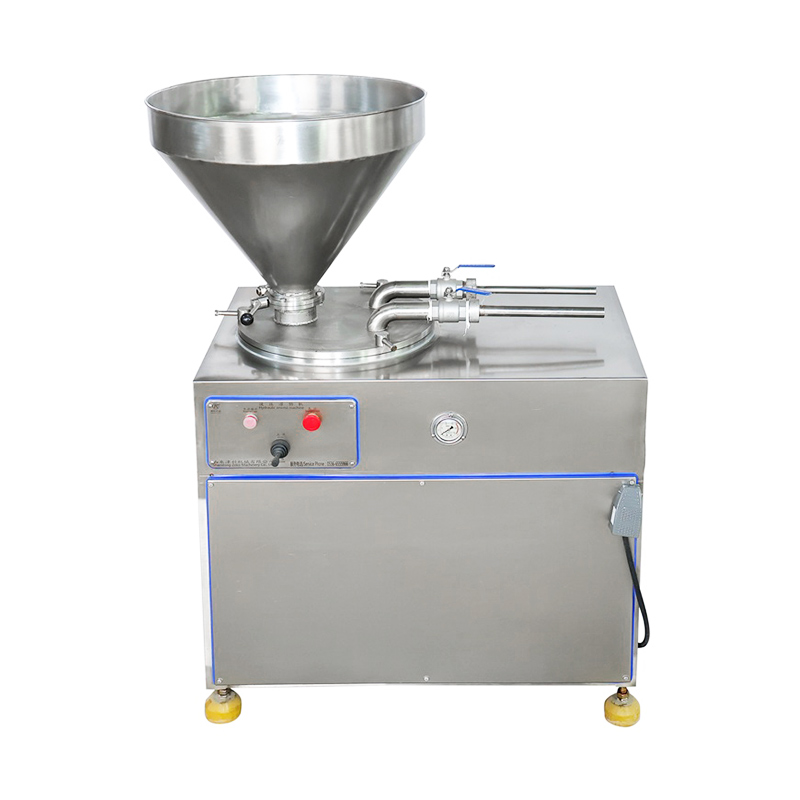

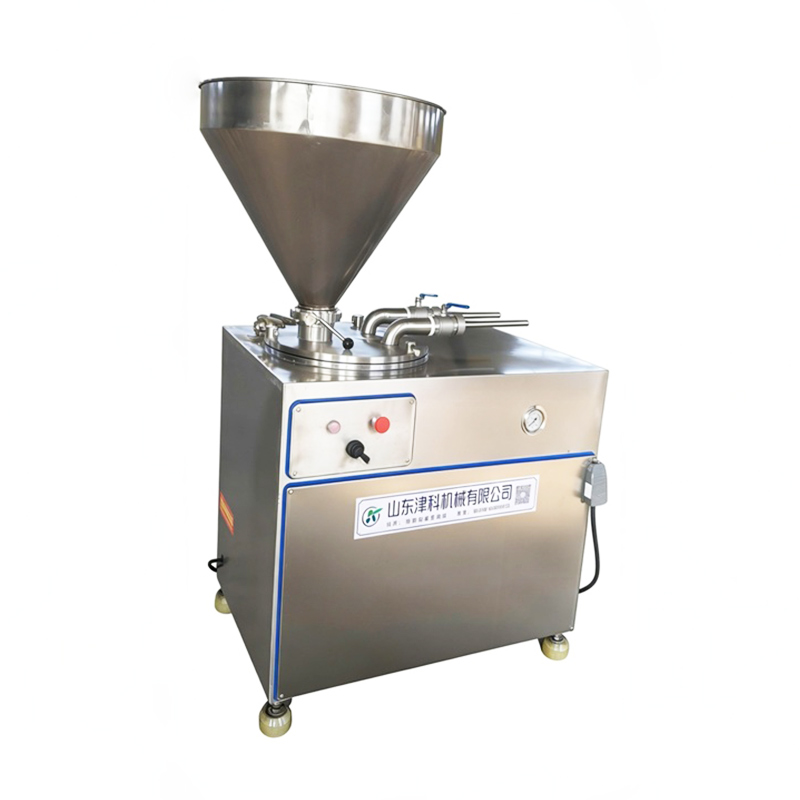

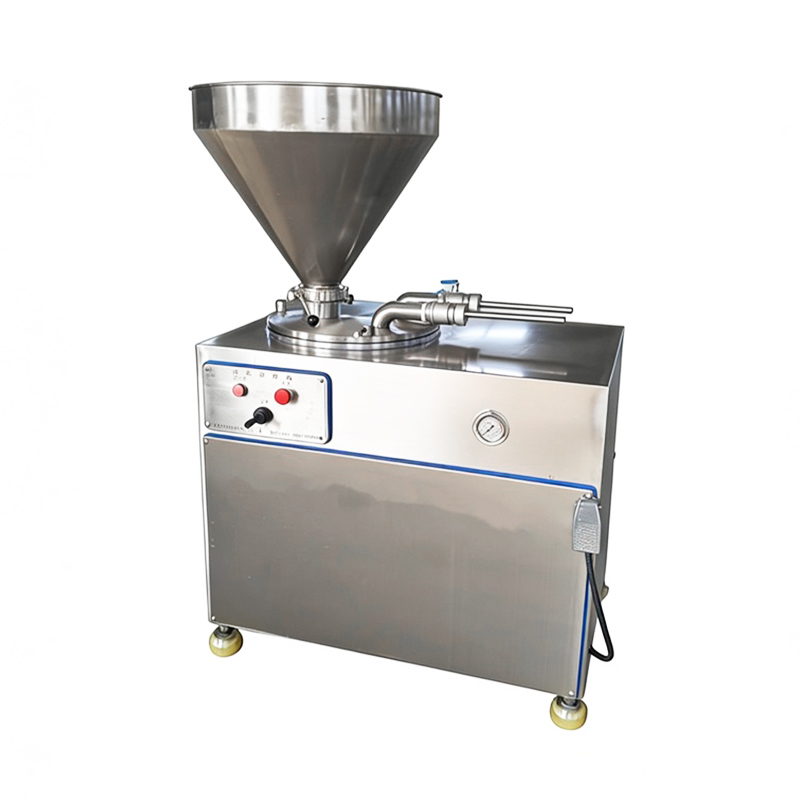

With large-diameter cylinder and large hopper design, this hydraulic sausage filling machine supports high output, greatly reducing labor cost. It realizes continuous and uninterrupted filling, suitable for mass production. Its efficiency is much higher than traditional manual or pneumatic filling machines.
3. Food-Grade 304 Stainless Steel Structure
All material-contact parts are made of food-grade 304 stainless steel, meeting international food safety standards. The surface is finely polished, easy to clean and maintain. It is corrosion-resistant, durable and hygienic, effectively extending service life and ensuring safe production.
4. Easy Operation & Wide Application
Equipped with user-friendly control panel, simple operation, one person can operate it easily. It supports various sausage types by changing different filling nozzles. With compact structure and reliable performance, it is widely used in meat factories, slaughterhouses and large food processing centers.
| Parameter | Single tube | Double tube |
| Motor Power | 1.5 kW | 2.2 kW |
| Hopper Capacity | 60 L | 80 L |
| Production Capacity | 300–400 kg/h | 600–800 kg/h |
| Filling tube | 2 set (φ12–φ32 mm) | 2 set (φ12–φ32 mm) |
| Filling Accuracy | ≤ ±3 g | ≤ ±3 g |
| Power Supply | 380 V /220V | 380 V /220V |
| Material | Food-grade 304 stainless steel | Food-grade 304 stainless steel |
| Overall Dimensions (L×W×H) | about 1100 × 630 × 1380 mm | about 1180 × 730 × 1460 mm |
| Net Weight | about 190 kg | about230 kg |
| Operation Mode | Single-station (1 operator) | Dual-station (1–2 operators) |
1. Large-Scale Sausage Manufacturing Lines
This hydraulic sausage filling machine is ideal for automatic sausage production lines. It works continuously with high pressure and large output, matching well with sausage tying, smoking and cooking equipment. It ensures stable and efficient mass production for various sausages.
2. Meat Processing Factories & Plants
Widely used in professional meat processing factories, it provides strong power for high-viscosity meat batter. Made of food-grade 304 stainless steel, it meets strict food hygiene standards and performs reliably in long-term industrial production.
3. Central Kitchens & Catering Enterprises
Suitable for central kitchens and large catering groups, it improves production efficiency and ensures consistent product shape. Easy to operate and clean, it greatly reduces labor costs for daily prepared sausages and meat products.
4. Food Workshops & Medium-Sized Producers
Perfect for medium-sized food workshops and sausage manufacturers. It offers high cost-performance, stable filling and simple maintenance. With wide adaptability, it helps producers expand product types and improve product quality effectively.
Operation Steps
1. Install the filling nozzle and hopper correctly, and check the machine appearance and power supply.
2. Put the processed meat material into the hopper and ensure no impurities inside.
3. Adjust the hydraulic pressure and filling speed to suitable parameters.
4. Press the start button to start automatic and quantitative filling work.
5. After finishing, turn off the power, disassemble parts and clean them thoroughly.
A: Yes, all parts touching meat are food-grade 304 stainless steel. It meets international food safety standards, is corrosion-resistant, easy to clean, and ensures safe and hygienic production.
A: It can fill all types of sausages, such as fresh sausage, cooked sausage, hot dog, salami and ham. By changing different nozzles, it works well for various casings and production needs.
A: No. It has a simple button for adjusting pressure and speed. One worker can easily operate and maintain it. Clear operation manual and video are provided for quick learning.
A: We provide 12-month warranty, free spare parts and lifelong technical support. Our team can offer online guidance for installation, operation and maintenance at any time.
A: Yes. With a high-quality hydraulic system, it runs stably with low noise. It is designed for continuous heavy-duty work, very suitable for industrial and large-scale production.
