Here are the key advantages and features of the Hydraulic Tumbler:
1. Efficient Massage for Superior Texture
The hydraulic tumbler simulates a manual massaging effect. As the drum rotates, meat pieces are lifted and fall back down, gently agitating the muscle structure. This mechanical action breaks down tough connective tissues and extracts salt-soluble proteins. The result is a sticky, exudative surface on the meat, which improves the binding quality and ensures a firm, sliceable texture after cooking.
2. Enhanced Water Retention and Yield
By creating a vacuum inside the drum, the machine opens up the meat's muscle cells, allowing brine and water to be absorbed more effectively rather than just coating the surface. This vacuum tumbling process significantly increases the meat's water-holding capacity. Consequently, the final product retains more moisture during thermal processing, resulting in a juicier texture and a higher overall product yield.

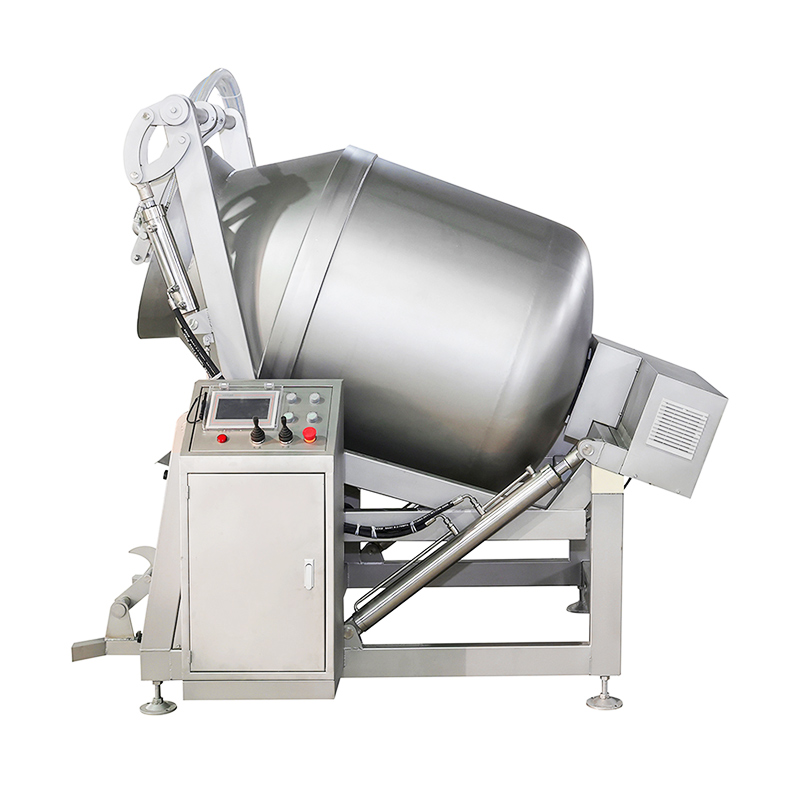

3. Hydraulic Tilt for Easy Operation
One of the standout features is the hydraulic tilting system. Unlike standard tumblers that require manual scooping, this model uses hydraulic power to lift and tilt the drum for effortless unloading. This automation drastically reduces physical strain on operators, speeds up the workflow between batches, and minimizes product handling, making it ideal for high-volume production environments.
4. Faster and Uniform Marination
Traditional still marination can take hours or even days for flavors to penetrate deep into meat. The combination of vacuum pressure and continuous tumbling accelerates this process exponentially. It forces the marinade deep into the meat fibers uniformly, ensuring that every piece, regardless of size, has consistent flavor throughout, all within a fraction of the usual time.
5. Versatile Processing Programs
Modern hydraulic tumblers come equipped with digital control panels. Operators can program specific cycles, adjusting the rotation time, rest intervals, and direction (forward/reverse) to suit different products. Whether processing delicate poultry, whole-muscle hams, or diced meat for sausages, the machine offers customized programs to achieve the perfect texture without damaging the product.
6. Durable and Hygienic Construction
Constructed entirely from high-grade stainless steel, the tumbler is built to withstand harsh sanitary environments. The drum and interior surfaces are polished with smooth, rounded corners to prevent bacteria buildup and facilitate easy cleaning. This robust design not only ensures compliance with strict food safety regulations but also guarantees long-term reliability in demanding commercial kitchens or processing plants.
The eylinder volume | 150L | 300L | 500L | 600L | 800L | 1000L | 1200L | 1500L | 2000L |
Loading Volume(Kg) | 112 | 225 | 375 | 450 | 600 | 750 | 900 | 1050 | 1350 |
Vacuum(Mpa) | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 | 0.04-0.08 |
Drum speed(r/min) | 5.5 | 7.5 | 7 | 7 | 6.5 | 6 | 4 | 4 | 4 |
Total Power(Kw) | 1.75 | 2.25 | 2.95 | 2.95 | 3.75 | 4.75 | 5.1 | 5.1 | 6.6 |
Overall dimension (L*W*H)mm | 1200*900*1300 | 1420*920*1450 | 1780*1020*1550 | 1980*1020*1550 | 2000*1230*1800 | 2140*1330*1900 | 2350*1330*1990 | 2400*1440*2100 | 2700 * 1540 *2220 |
The total weight(Kg) | 280 | 440 | 500 | 530 | 600 | 630 | 800 | 980 | 1300 |
Here are the specific application scenarios for the Hydraulic Tumbler:
1. Whole-Muscle Ham Production
In cooked ham manufacturing, the hydraulic tumbler is indispensable. Whole pork muscles are tumbled under vacuum with brine and phosphate solutions. The mechanical action extracts protein to create a sticky exudate that binds meat pieces together during cooking. This ensures the final ham has a uniform pink color, firm sliceable texture, and high juiciness without visible jelly pockets.
2. Bacon and Belly Processing
For bacon production, the tumbler accelerates the curing of pork bellies. The vacuum action opens muscle fibers to absorb smoke flavorings, salt, and sweeteners deeply and evenly. This replaces traditional multi-day static curing with a process that takes only hours. The result is bacon with consistent striping and flavor throughout, from edge to edge.
3. Marinated Poultry and Whole Cuts
Processors use hydraulic tumblers for chicken parts, turkey breasts, and whole roasts. The machine forces marinades deep into the meat, ensuring that every piece is uniformly seasoned. Whether producing ready-to-cook grilled chicken or rotisserie roasts, the tumbler guarantees that the meat stays moist during cooking and delivers consistent flavor in every serving.
4. Diced Meat for Sausages and Emulsions
When preparing raw material for sausages or emulsified products, the tumbler is used for pre-treatment. Diced meat is tumbled with salt and phosphates to extract myosin protein before grinding. This pre-treatment step dramatically improves the binding capacity of the final emulsion, resulting in sausages with better bite, snap, and fat stability during cooking.
5. Reconstituted and Formed Meats
For value-added products like chicken nuggets, formed steaks, or pressed roasts, the tumbler helps bind smaller meat pieces together. The extracted protein acts as a natural glue. After tumbling, the meat mass can be stuffed into molds or casings and cooked, then sliced into portions that hold together perfectly without falling apart.
6. Ready-to-Eat Meal Components
In the growing prepared meals sector, the hydraulic tumbler prepares meat components for dishes like beef stroganoff or chicken alfredo. It rapidly infuses flavors into meat strips or chunks, ensuring that even after the meat is frozen, reheated, or combined with sauces, it retains excellent texture and a fully developed taste profile.
1. Preparation
First, clean the inside of the drum to ensure it is free of impurities. Load the meat raw materials, which have been injected with brine or seasoned, into the drum. Note that the loading volume is usually 60%-70% of the drum's volume; overfilling will affect the tumbling effect.
2. Setting the Program
Set the working parameters through the control panel: including total tumbling time, running time and interval time (e.g., 20 minutes of operation, 10 minutes of rest), speed, and forward/reverse direction. For vacuum-type equipment, the vacuum pump needs to be started to remove air from the drum to the set negative pressure value.
3. Starting Operation
Close the sealing cover and start the machine. The drum begins to rotate, and the meat pieces are repeatedly lifted and dropped inside. The vacuum environment causes the meat fibers to expand, accelerating the absorption of brine. During operation, the changes in meat quality can be observed through the viewing window.
4. Unloading and Cleaning
After the program ends, release the vacuum. Use the hydraulic system to tilt the drum to a suitable angle and activate the reverse function to slowly unload the meat. After work is completed, the inside and outside of the drum must be thoroughly cleaned to prevent residue from spoiling and breeding bacteria.
A: Vacuum is essential because it expands meat fibers, opening channels for the brine to penetrate deeply. Without vacuum, air bubbles form and prevent proper protein extraction. This results in loose texture and poor binding. The vacuum ensures efficient marination and a firm, sliceable final product.
A: The optimal loading capacity is 60% to 70% of the drum's total volume. This space allows the meat to fall freely and massage properly. Overloading prevents effective tumbling—the meat just rotates without impact, leading to uneven brine distribution and poor texture development.
A: The process is complete when the meat surface becomes sticky and sticky protein strands (exudate) appear. This indicates sufficient protein extraction. Most digital models have timers, but visual inspection through the window is recommended. Over-tumbling can damage the meat structure.
A: The hydraulic system automates loading and unloading. It tilts the heavy drum effortlessly, allowing meat to slide out without manual scooping. This saves significant labor time, reduces physical strain on workers, and speeds up production cycles, especially when handling batches over 100 kilograms.
A: First, rinse with warm water to remove residue. Use a mild detergent and a soft brush—never harsh tools that scratch the surface. Open the lid to air dry completely. Never spray water directly on the control panel or motor; wipe them with a damp cloth instead.
